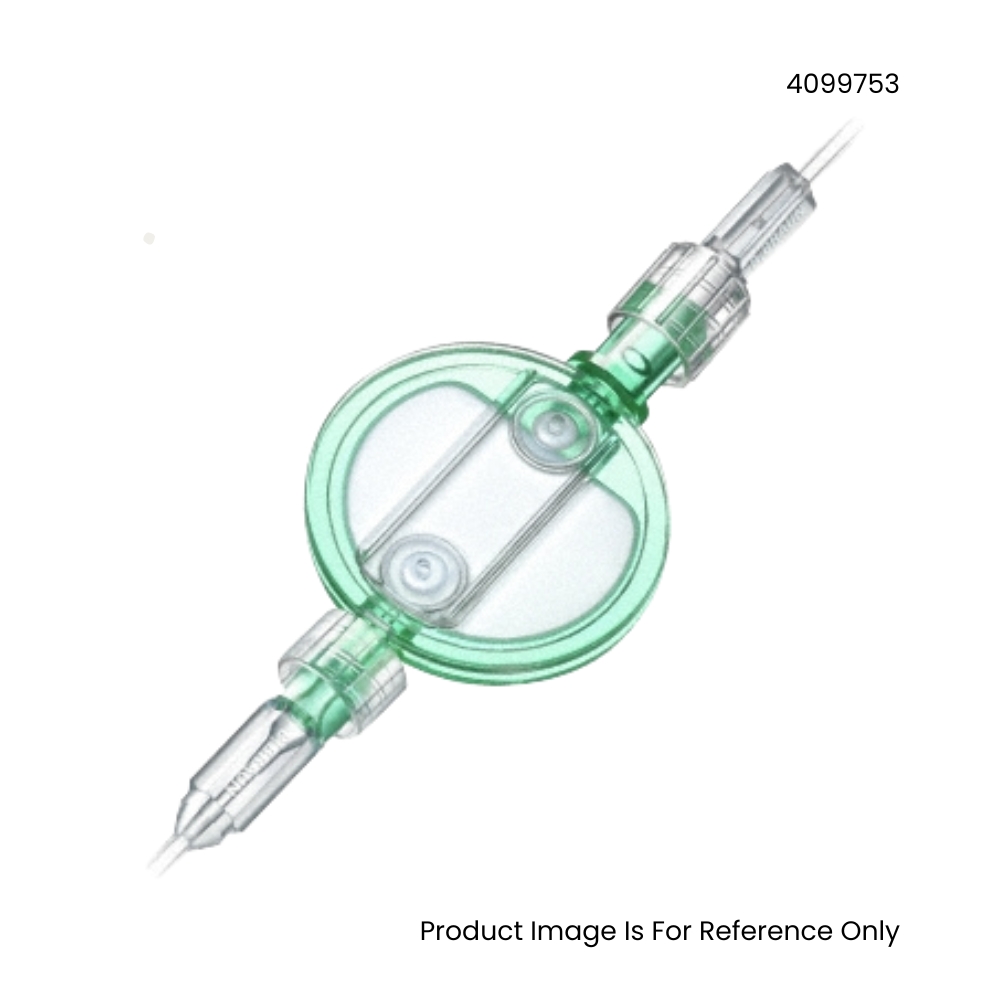

B. Braun Intrapur Paediatric 0.2mm Positively Charged Membrane IV Infusion Filter

Advantages:

B. Braun IV filters, the overall complication rate could be reduced by 10%. Using IV filters also makes sense financially: the length of ICU stay can be decreased by almost one day/patient, which represents a 23% drop – a substantial economic advantage because additional patients a year can be admitted. In a study, this led in turn to an increase in revenue because no patients had to be turned away due to a lack of capacity. Supor membrane 0.2 µm, effective filtration area 4.5 cm, made out of Polyethersulfone (PES)

• Helps to prevent particulate contamination by retaining particles > 0.2 µm.
• Reduces microbiological contamination by retaining bacteria and fungi.
• Reduces the risk of medication error. Solid particles > 0.2 µm occurring from incompatibility reactions are retained by the IV filter membrane. Blockage of the filter membrane can be an alarming signal for an incompatibility reaction, which could have severe clinical consequences for the patient when being infused.
• Rositively charged to retain endotoxins.

Venting function – two 0.02 ?m hydrophobic PTFE membranes to

• Reduce the risk of air embolism regardless position of the filter. The hydrophobic characteristic of the membrane blocks the passage of air and successfully vents the excess air out of the system.

Specifications:

• Connections at both sides of the filter with Luer Lock fittings
• Tubing diameter: 1.2 x 2.2 mm (PVC, DEHP-free)
• Priming volume housing: 0.7 ml
• Filling volume (incl. tubing): 1.19ml
• Flow rate (aqua dist.): 10ml/min
• Pressure resistant up to 2 bar (Burst pressure filter housing 3.1 bar)
• Total set length: 37 cm
• DEHP-free
• Use of a filter for up to 96h

The device can be used for all patients for whom infusion therapy is prescribed. No gender or age-related limitations. Intrapur Paed can be used for adults, pediatric, and neonates.

*This product image is only for reference.
