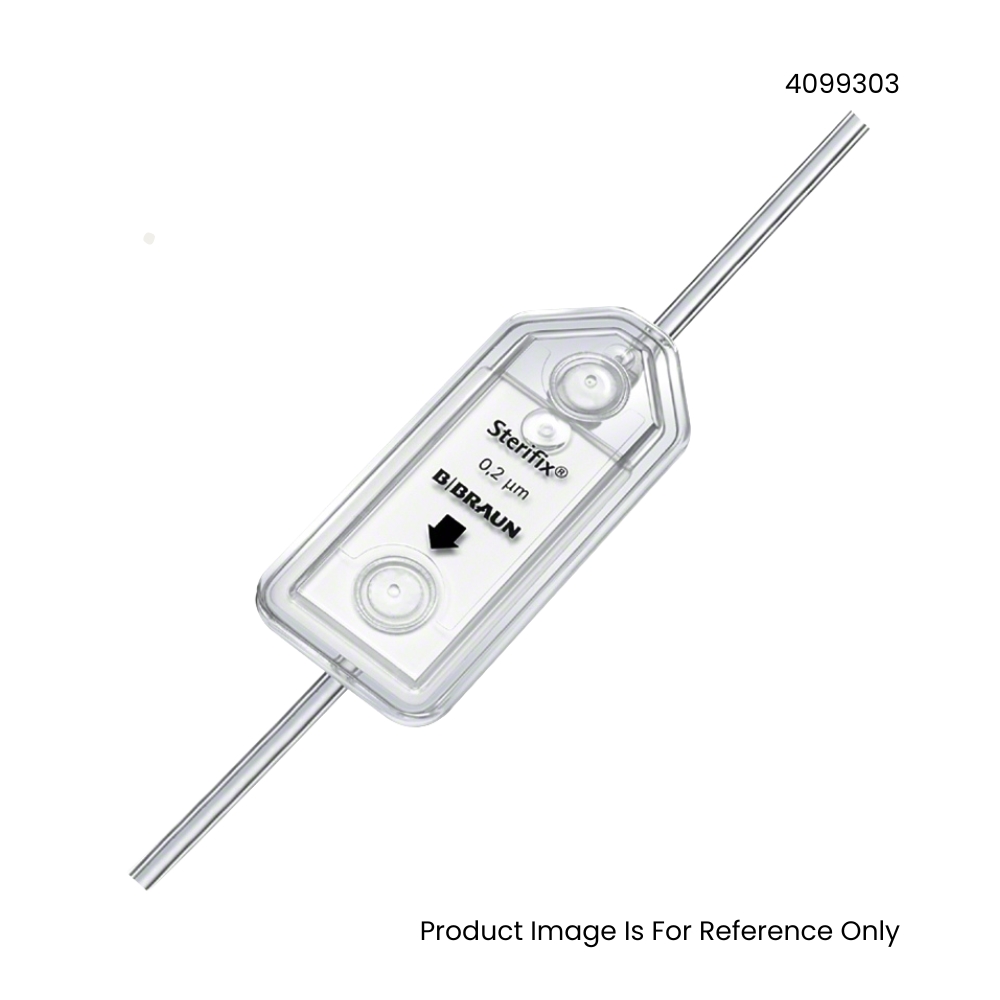

B.Braun SteriFix 0.2mm Infusion Filter

B.Braun Sterifix Infusion Filter Advantages:

By using B. Braun IV filters, the overall complication rate could be reduced by 10%. Using IV filters also makes sense financially: the length of ICU stay can be decreased by almost one day/patient, which represents a 23% drop – a substantial economic advantage because additional patients a year can be admitted. In a study, this led in turn to an increase in revenue because no patients had to be turned away due to a lack of capacity.

Supor membrane 0.2 µm, effective filtration area 10 cm, made out of Polyethersulfone (PES)

• Helps to prevent particulate contamination by retaining particles > 0.2 µm.
• Reduces microbiological contamination by retaining bacteria and fungi.
• Reduces the risk of medication error. Solid particles > 0.2 µm occurring from incompatibility reactions are retained by the IV filter membrane. Blockage of the filter membrane can be an alarming signal for an incompatibility reaction, which could have severe clinical consequences for the patient when being infused.
• Low protein binding

Venting function – two 0.02 ?m hydrophobic PTFE membranes to

• Reduce the risk of air embolism regardless position of the filter. The hydrophobic characteristic of the membrane blocks the passage of air and successfully vents the excess air out of the system.

B.Braun Sterifix Infusion Filter Specifications:

• Connections at both sides of the filter with Luer Lock fittings
• Available with different tubing diameters: 2.0 x 4.1 mm (PVC, DEHP-free) or 3.0 x 4.1 mm (PVC-free)
• Total set length: 31 cm
• Priming volume filter housing: 2.4 ml
• Filling volume (incl. tubing): 3.46 ml (PVC, DEHP-free set); 4.54 ml (PVC-free set)
• Flow rate (aqua dist.): 20 ml/min
• Pressure resistant up to 2 bar (Burst pressure filter housing 3.1 bar)
• DEHP-free
• PVC- free version available.
• Use of a filter for up to 24 h

The device can be used for all patients for whom infusion therapy is prescribed. No gender or age-related limitations. Sterifix can be used for adults, pediatric, and neonates. *This product image is only for reference.
